PINSIDUN Sa760 is industrial-grade driving semi-automatic floor scrubber designed for large commercial spaces (shopping malls, warehouses) and industrial scenes (factory workshops, logistics centers).
Item No :
PSD-Sa760Working Efficiency :
6500㎡/HBrush/Squeegee Width :
760mm/1080mmTank Capacity :
Water Tank 110L+Sewage Tank 120LBattery Capacity :
24V200AHMotor :

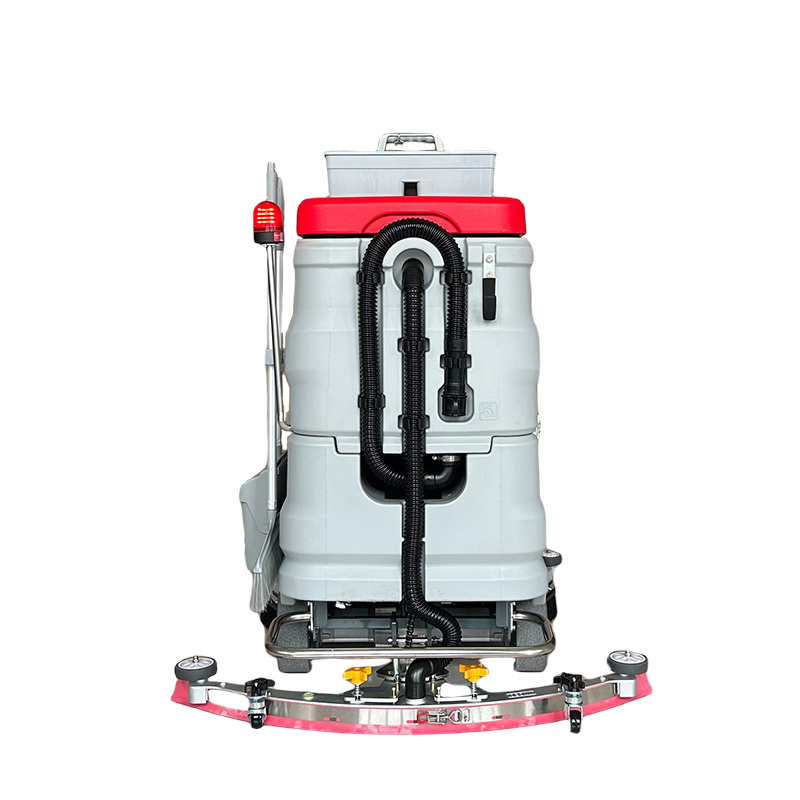

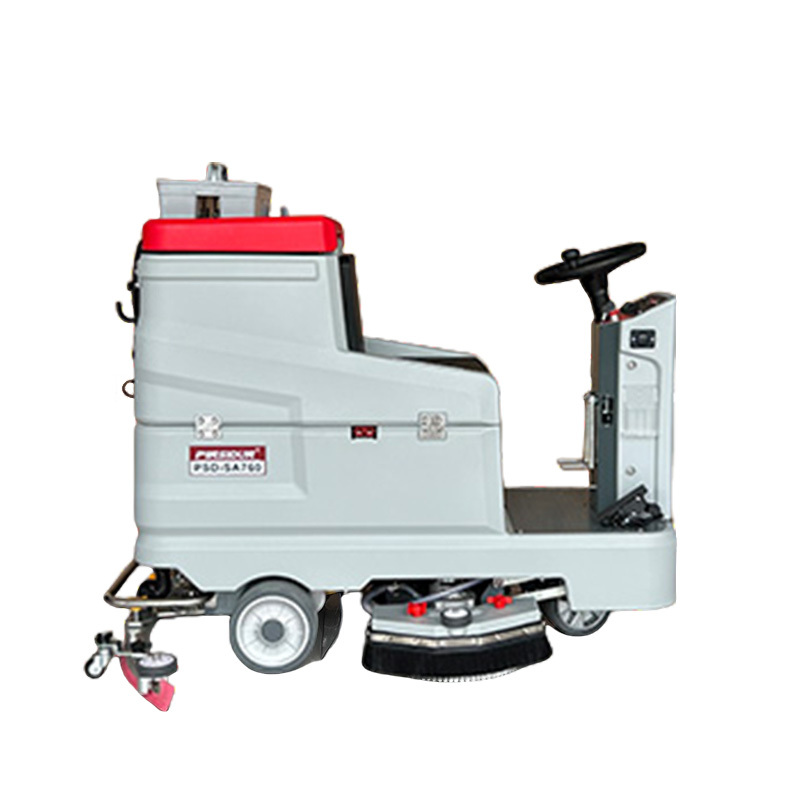

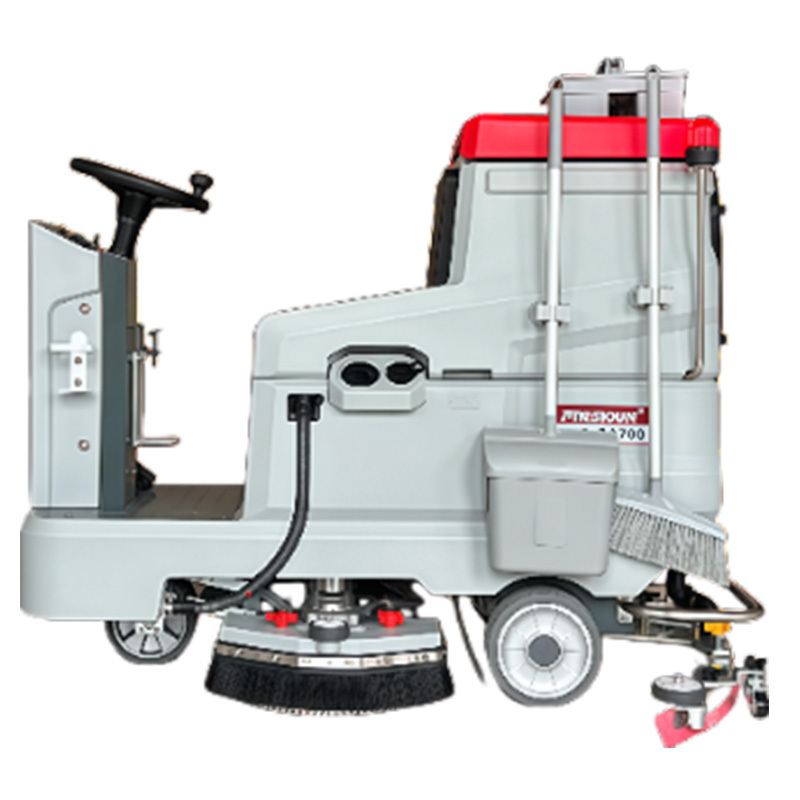

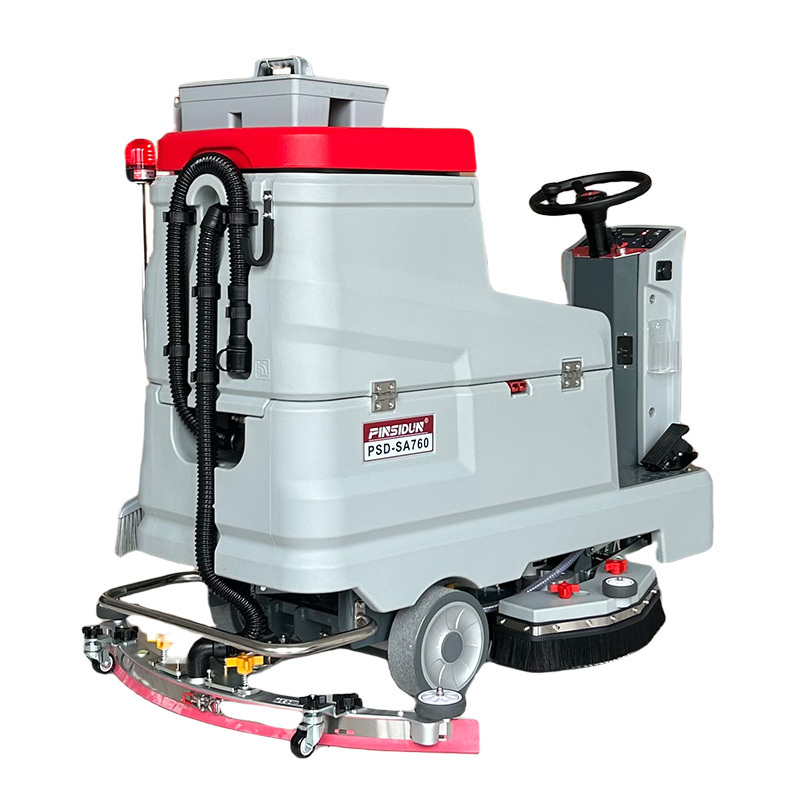

brush motor 300w*2+suction motor 500w+brush motor 300w*2PINSIDUN Sa760 Manual Ride On Floor Scrubber ,The whole machine adopts a red and white contrasting industrial appearance, equipped with a black steering wheel driving system and an ergonomic seat. The core is equipped with dual 15-inch floor scrubbers (38cm in diameter) and a 1080mm ultra-wide squeegee, forming an effective cleaning width of 760mm. The integrated 110L clean water tank and 120L sewage tank support high-intensity continuous operation. This equipment combines efficient cleaning, industrial-grade endurance and flexible control. It is a professional solution for large-area hard floors such as logistics centers and manufacturing plants, significantly reducing the cleaning cost per unit area.
Features
Military-grade cleaning efficiency: Working Efficiency 6500㎡/h, 1.5 basketball courts can be cleaned in 1 hour, 12 times higher than manual labor. Dual 300W high-torque brush motors provide 30KG brush pressure, which can break down concrete oil stains and warehouse scale. Intelligent water recovery system, 500W water suction motor produces 150mbar high vacuum, with 1080mm water suction squeegee, to achieve synchronous washing and suction, and mop and dry immediately.
Ultra-long industrial endurance: 24V/200AH battery pack supports 4-6 hours of continuous operation to meet the needs of two-shift system. 110L+120L dual large water tank design reduces water filling/sewage discharge interruption.
All-terrain adaptability: rear-drive dual-wheel configuration + 8% climbing ability, adapt to warehouse slopes and uneven workshop floors. 870mm minimum turning radius, 0-8km/h speed regulation, flexible steering and cleaning in narrow areas.
Professional-level safety guarantee: The control panel is integrated with an emergency brake button, and the circuit meets the IP54 waterproof and explosion-proof standards. The operating noise is only 65-68dB, which does not disturb the environment during cleaning and is suitable for noise-sensitive places.
Specification
Name | PSD-Sa760 | Turning Radius | 870mm |
Rated Voltage | 24v | Water Tank | 110L |
Working Efficiency | 6500㎡/H | Sewage Tank | 120L |
Brush Width | 760mm | Sound Level | 65~68dB (Tested) |
Squeegee Width | 1080mm | Battery Pack | 24V200A |
Brush Diameter (QTY) | 15inch*2 | Charging Time | 6-8h |
Brush Speed | 0-8KM/H | Working Time | 4-6h |
Brush Motor | 300W * 2 | Battery Weight | 136KG |
Brush Pressure | 30KG | Machine Weight | 205KG |

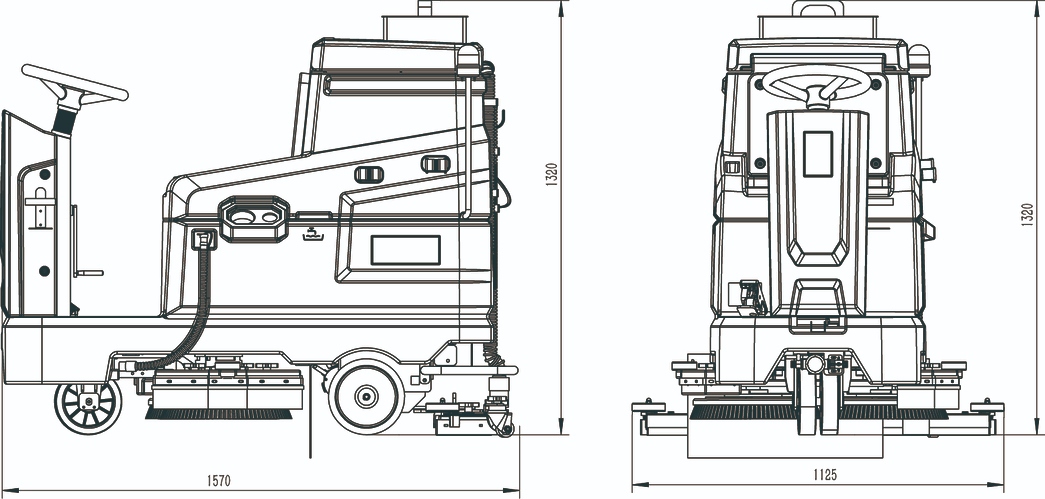

Suction Motor | 24V/500W | Machine Dimensions (with Water Tank) | 1560*865*1315mm |
Vacuum Degree | 150mbar | Overall Dimensions (with squeegee) | 1560*1125*1315mm |
Brush Motor | 300W*2 | Pack Dimensions | 1650*880*1450mm |
Travel Speed | 0 - 8km/h | Accessories | Brush Disc, Needle Disc |
Maximum Gradeability | 8% |
