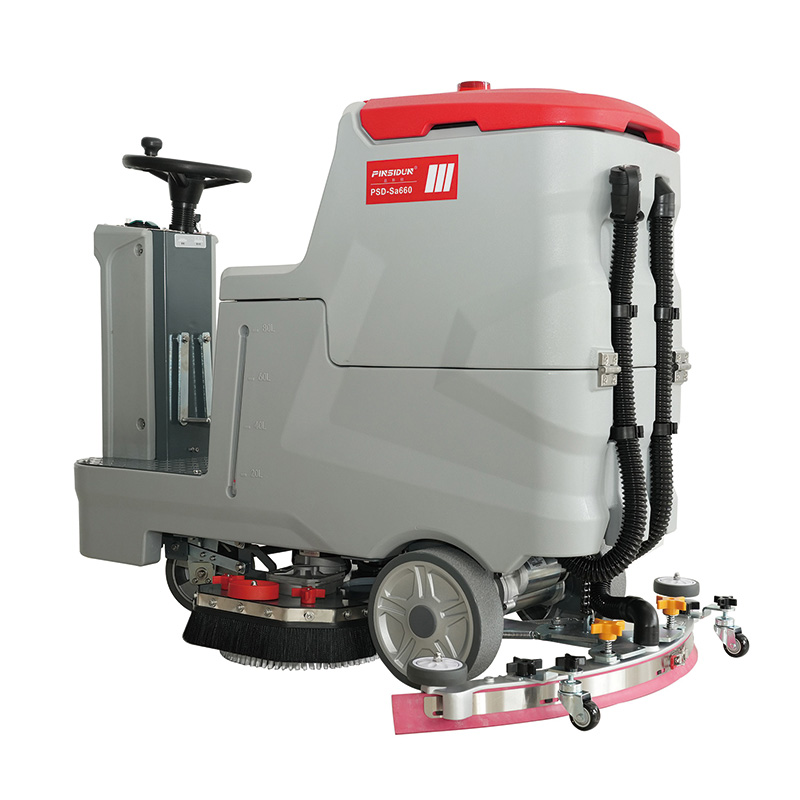

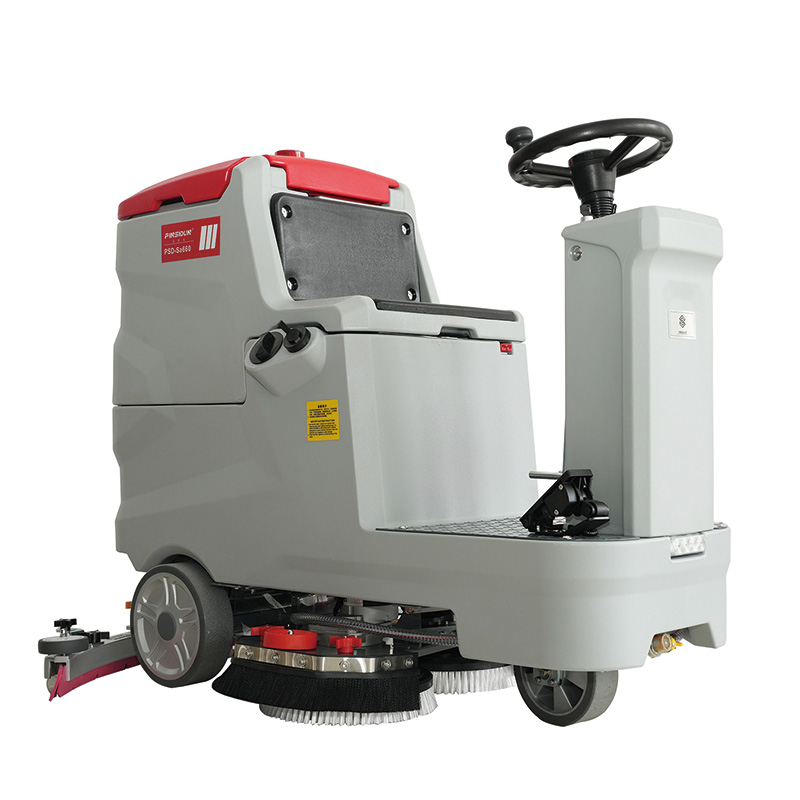

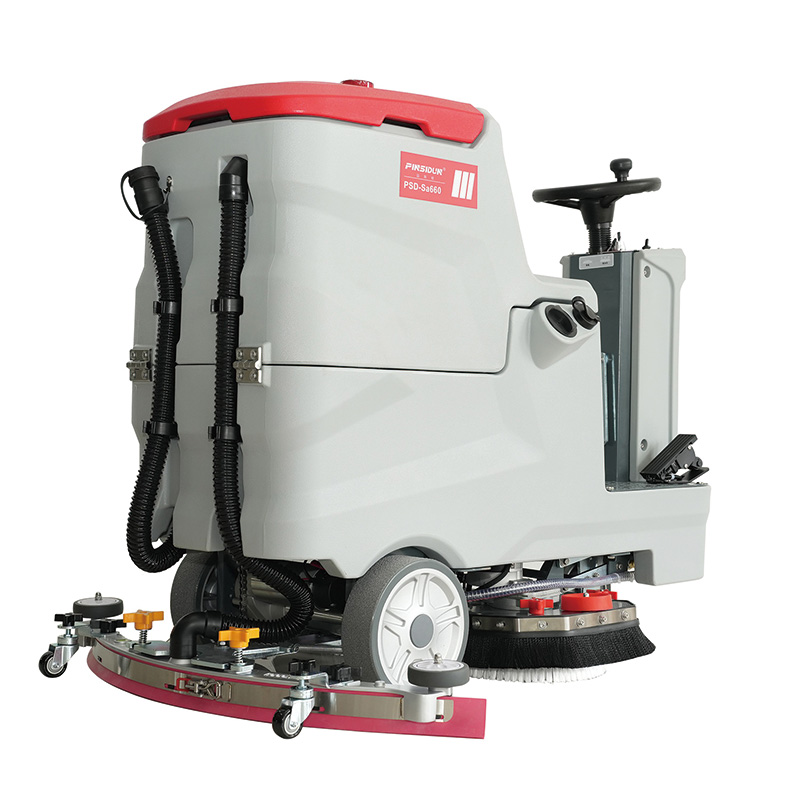

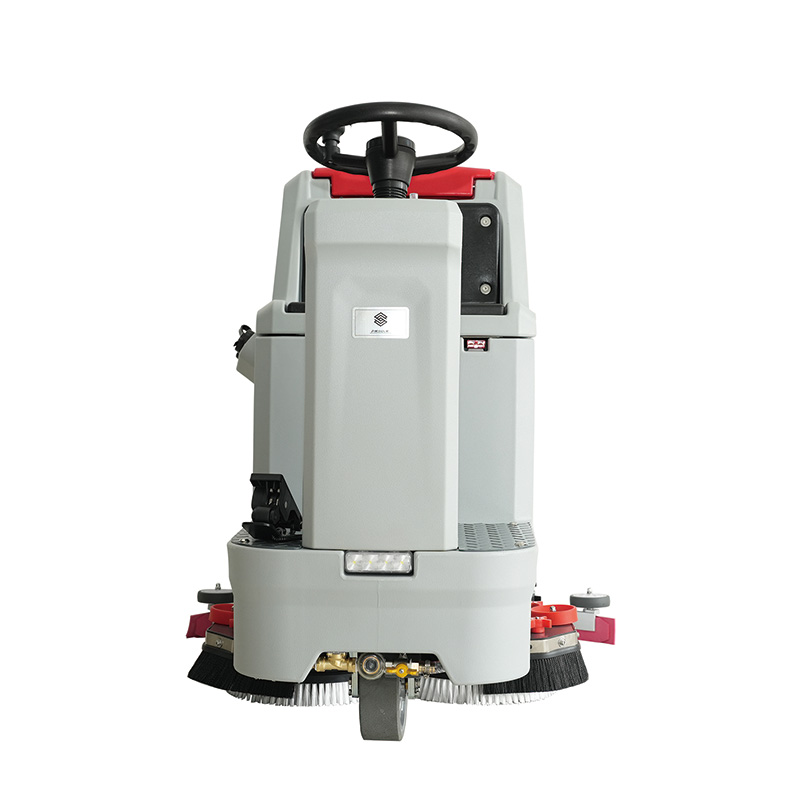

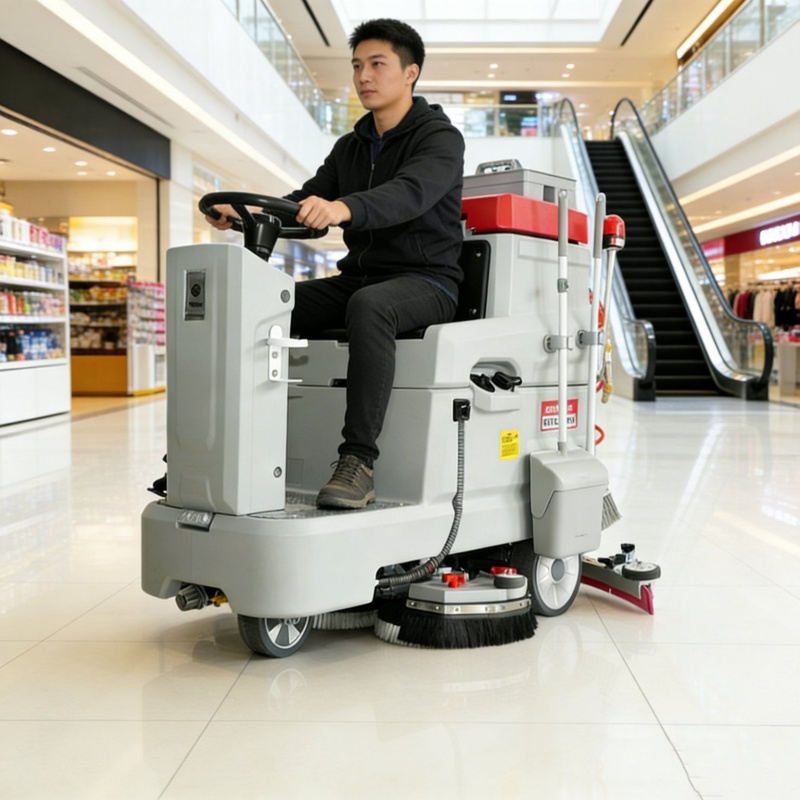

The PINSIDUN SA660 semi-automatic floor scrubber adopts red and white industrial design, equipped with dual 13-inch brush discs (660mm brush width) and 1000mm ultra-wide squeegee, achieving 5500㎡/hour efficient cleaning.


Item No :
PSD-Sa660Working Efficiency :
5500m²/hBrush/Squeegee Width :
660mm/1000mmTank Capacity :
Water Tank 75L+Sewage Tank 80LBattery Capacity :
24V100AHMotor :

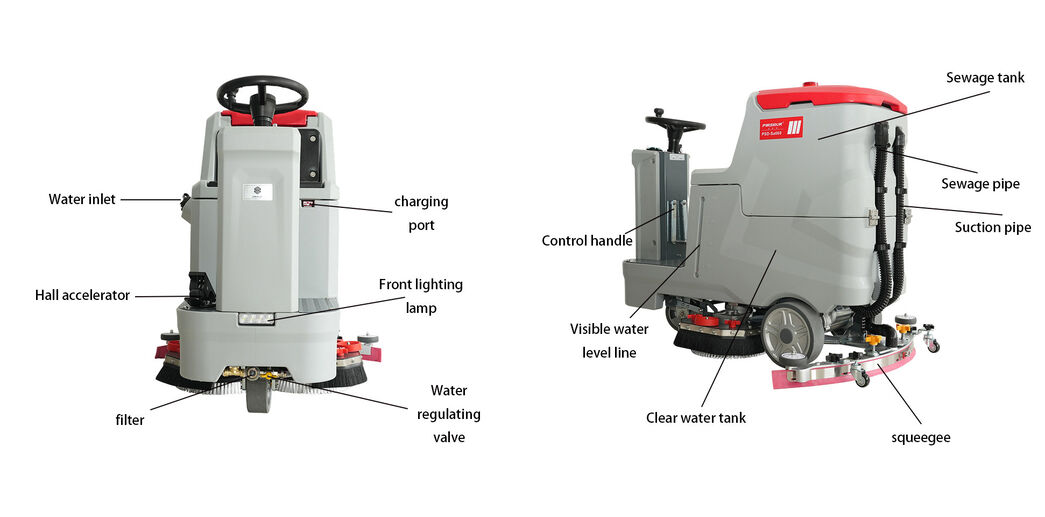

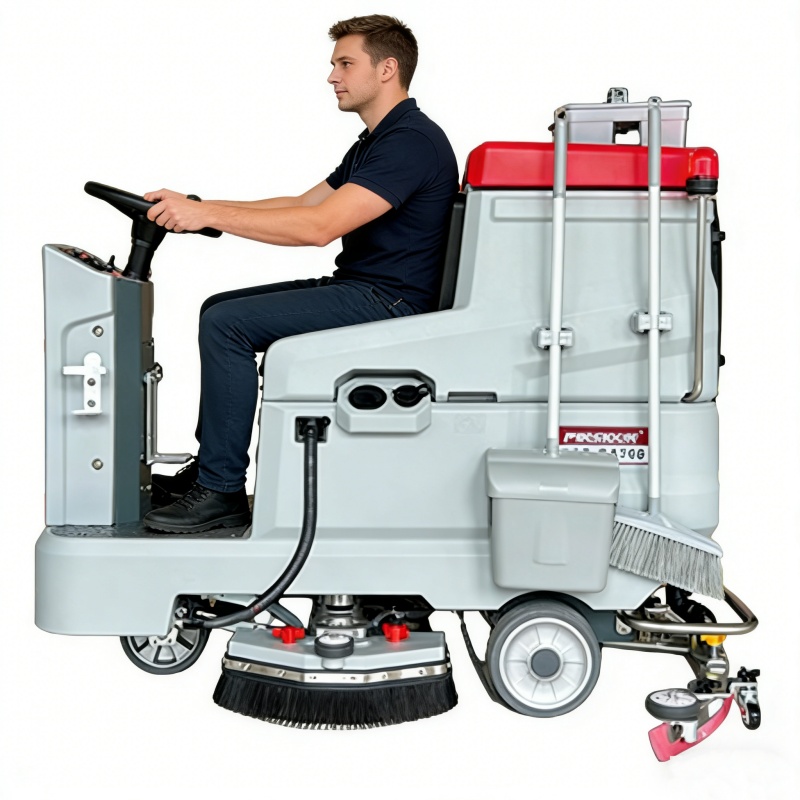

brush motor 300w*2+suction motor 500w+travel motor 300wPINSIDUN Sa660 is small manual double brush ride on floor scrubber, Equipped with a 24V/100Ah battery system, it drives dual 300W brush disc motors + 500W water suction motors, and supports 0-8km/h continuously variable speed. The 75L clean water tank + 80L sewage tank can meet the needs of large-scale continuous operation for 3-4 hours, and the compact body (1465×750×1160 mm) is suitable for storage shelf channels. The control panel integrates electronic speed regulation and water absorption delay functions, 870mm turning radius for flexible steering, 65db low noise, and a complete maintenance plan. It is suitable for factories, supermarkets and other scenes, and can easily cope with 8% climbing, with labor-saving and efficient cleaning.
Advantages & Features
Efficient cleaning: dual brush discs + large squeegee, 5500㎡/h operation, cleaning and recycling synchronously.
Long-lasting endurance: large-capacity battery + fast charging, 3-4 hours of continuous work, reducing downtime.
Flexible and low noise: 870mm small turning radius, 65db low noise, adaptable to multiple scenarios.
Durable and safe: perfect maintenance plan, 8% climbing ability, to ensure long-term stable operation.
Data traceability: efficiency/size/weight, structural design and other machine parameters
Maintenance efficiency optimization: quick-detachable brush disc/needle disc, modular battery (lead acid or lithium battery)
Intelligent driving system: Steering wheel stepless speed adjustment, automatic braking on slopes, low voltage protection
Triple industrial-grade power: dual 300W high-torque brush disc motor, 225 rpm deep polishing, 500W water suction motor + 150mbar vacuum suction, sewage recovery rate > 95%, 1000mm wear-resistant rubber strip coverage area exceeds 50% of the brush disc


Specification
| Name | PSD-SA660 | Turning Radius | 870mm |
| Rated Voltage | 24V | Water Tank | 75L |
| Working Efficiency | 5500m²/h | Sewage Tank | 80L |
| Brush Width | 660mm | Sound Level | 65db |
| Squeegee Width | 1000mm | Battery Pack | 24V100A |
| Brush Diameter (QTY) | 13inch*2 | Charging Time | 6-8H |
| Brush Speed | 0 - 8km/h | Working Time | 3-4h |
| Brush Motor | 300W*2 | Battery Weight | 80.2KG |
| Brush Pressure | 45kg | Machine Weight | 160KG |
| Suction Motor | 500W | Pack Dimensions | 1480*1350*775mm |

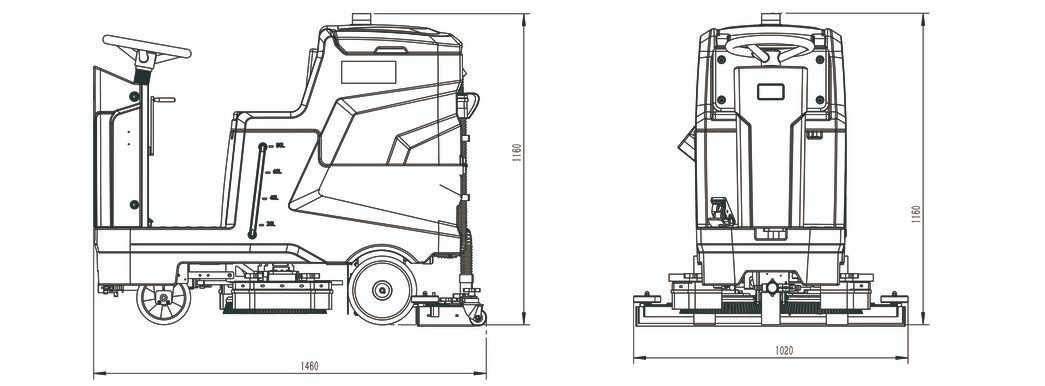

| Vacuum Degree | 150mbar | Machine Dimensions (with Water Tank) | 1465*750*1160mm |
| Travel Motor | 300W | Overall Dimensions (with squeegee) | 1465*1000*1160mm |
| Travel Speed | 0-8km/h | Accessories | Brush Disc, Needle Disc |
| Maximum Gradeability | 8% |

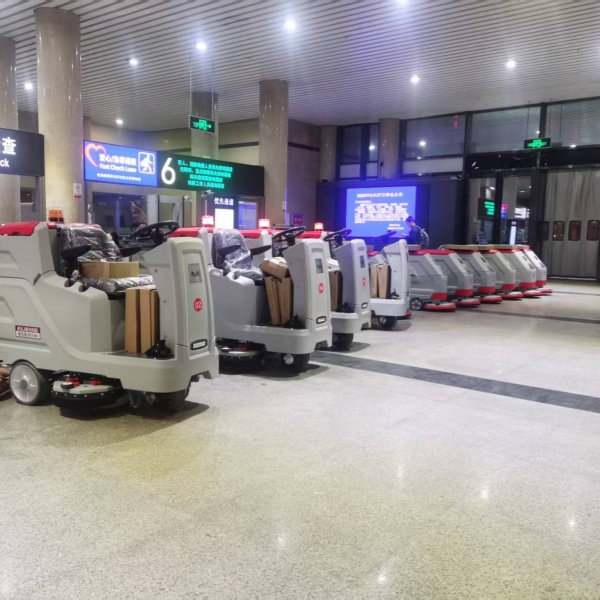

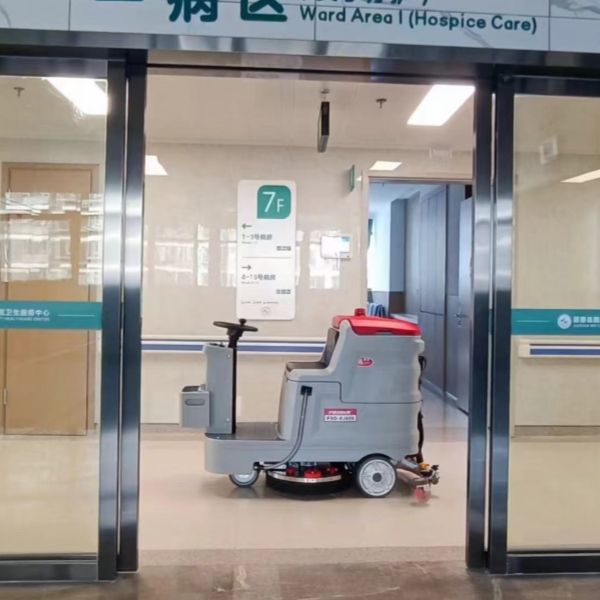

Applications
