Larger Floor scrubber machine Auto Floor Scrubber PSD-XJ9600

PINSIDUN XJ9600 larger automatic double brush ride on floor scrubber,the top-notch floor cleaning equipment (concrete, tile, epoxy floor) designed for deep cleaning.

  • Item No :

    PSD-XJ9600
  • Working Efficiency :

    9600m²/h
  • Brush/Squeegee Width :

    960mm/1200mm
  • Tank Capacity :

    Water Tank 240L+Sewage Tank 260L
  • Battery Capacity :

    36V200AH
  • Motor :

    brush motor 1000w*2+travel motor 1400w+suction motor 650w

PINSIDUN XJ9600 larger Ride On Floor Scrubber,It combines scrubbing and drying in one, efficiently handles large-area stains, and is equipped with dual 19-inch brush plates and 1150mm floating suction bar, forming an effective cleaning width of 1060mm. It is equipped with a 240L clean water tank + 260L sewage tank, a built-in 36V/200AH battery pack, supports 7-8 hours of continuous operation, and is suitable for high-intensity scenarios such as warehouses and factories. This device redefines the cleaning standards for large hard floors with industrial-grade efficiency, intelligent diagnosis, and ultra-long battery life. It is particularly suitable for logistics centers (average daily cleaning ≥8,000 square meters), manufacturing workshops (oil-resistant design), and other scenarios.





Advantages & Features

Military-grade cleaning power: working efficiency 9600㎡/h, 1 unit ≈ 20 people's workload, concrete oil stains are removed in one go. Dual 750W high-torque brush motor + 600W water suction motor, vacuum degree up to 150mbar, 225Rpm brush speed, 36V high-voltage system, easy to handle heavy stains on tiles and concrete.

Intelligent water management system: dual-mode water gun integration, standard/high-pressure switching, to deal with stubborn oil stains. Four-layer filtration protection (float + filter cotton + filter screen + sealing strip) to prevent motor blockage.

All-terrain industrial adaptation: 1100W drive motor, 8% climbing ability, matching warehouse slopes and uneven floors. Suction scraper floating adjustment, zero residue at tile/terrazzo joints.

Intelligent and convenient: LCD screen real-time display of working conditions, with clean water/sewage level alarm, speed knob and water regulator precise control, flexible operation.

Long-term economic efficiency: modular consumables design: brush plate/strip replacement ≤5 minutes. 1500 hours of extended warranty, 40% lower unit cleaning cost.

Long-lasting battery life: 7-8 hours of large-capacity battery life, 36V power system energy consumption optimization, to meet long-term high-intensity operations.

Widely adaptable: supports hardwood and other floors, optional special brushes and scrubbing pads to avoid damage to the floor.

Durable and easy to maintain: key components have strong power, brushes and water-absorbing strips are easy to replace, daily inspection cycles are clear, and maintenance costs are reduced.

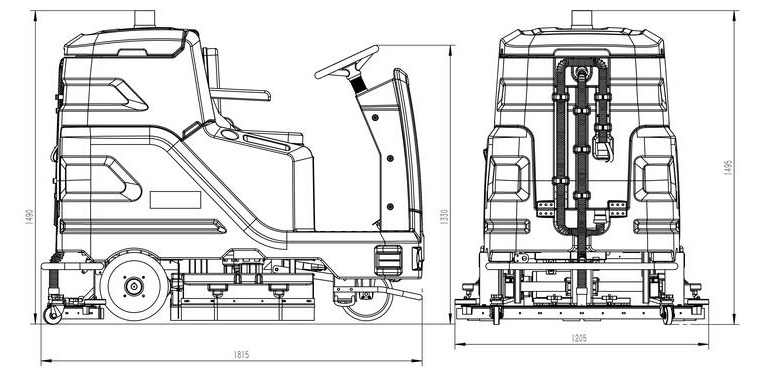

floor scrubber with vacuumbattery auto scrubber warehouse floor cleaning

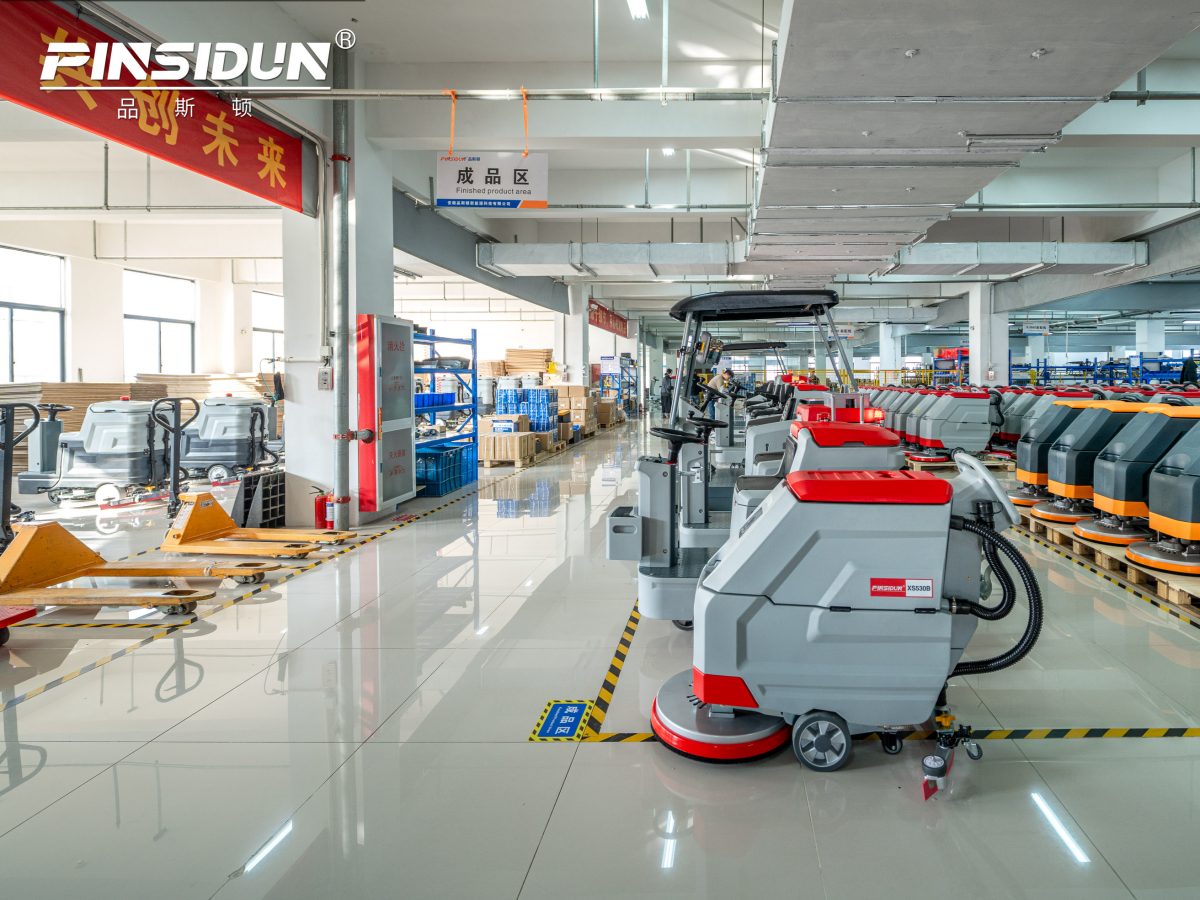

  • Commercial automatic floor cleaning machine large size

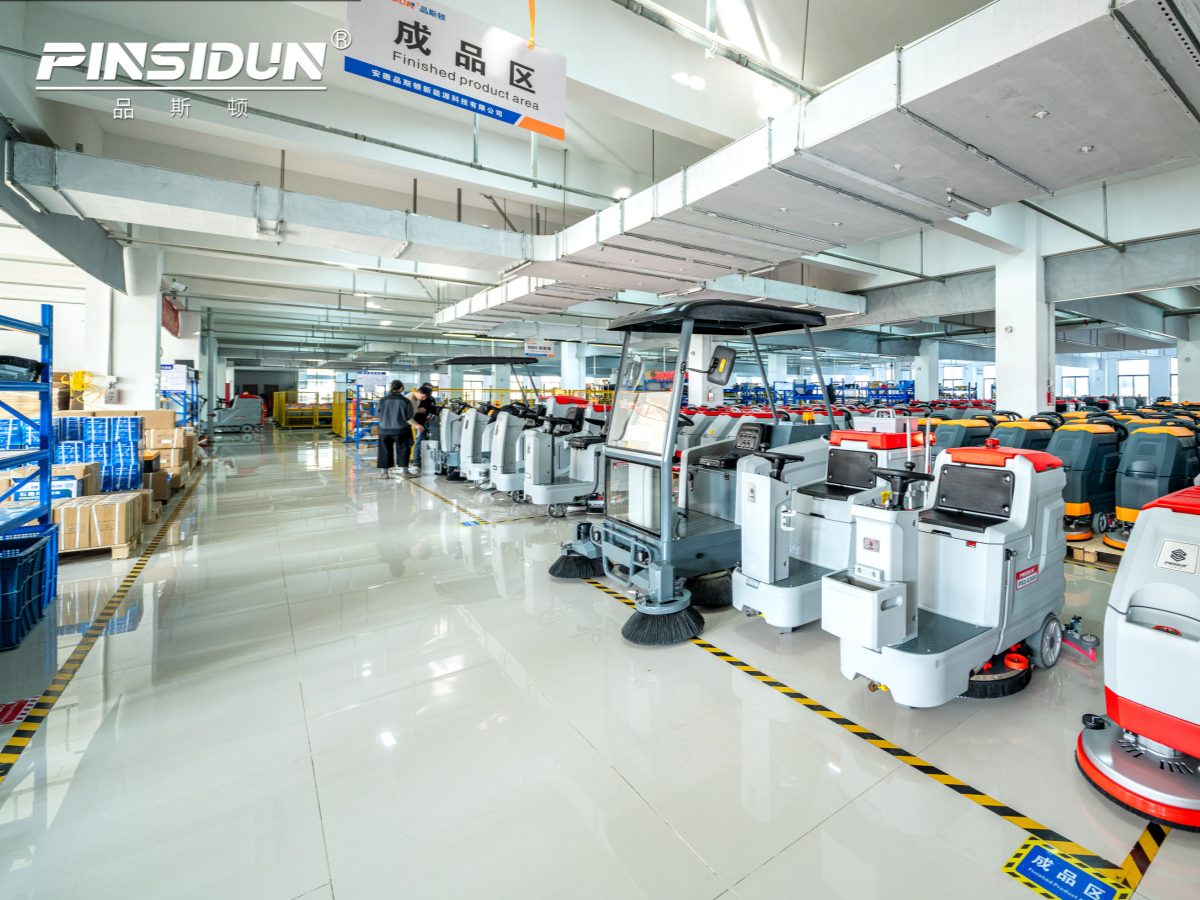

  • Heavy duty ride-on auto floor scrubber for warehouses

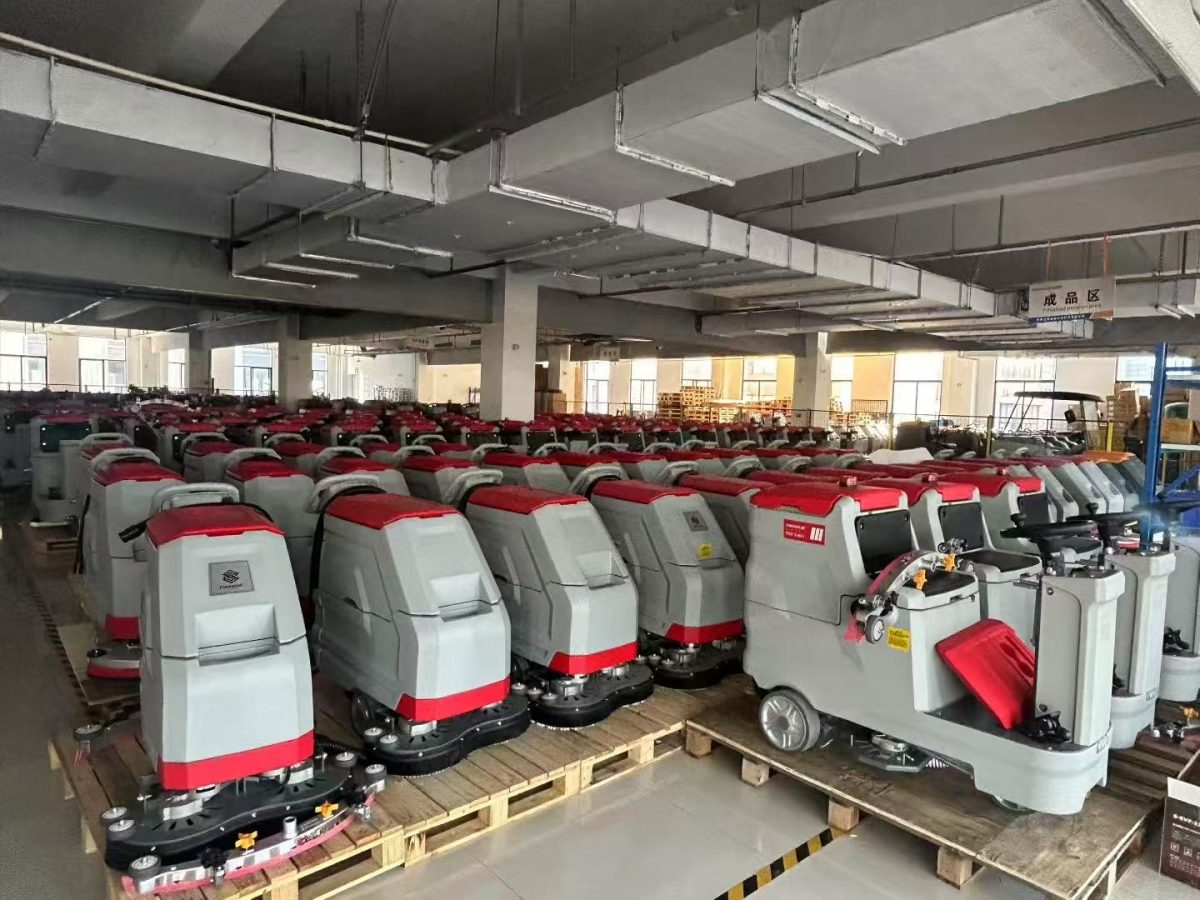

  • Large capacity battery powered floor scrubber dryer


Specification

Name PSD-XJ9600 Turning Radius 1180mm
Rated Voltage 36V Brush Lifting Motor 36V1500N
Working Efficiency 9600m²/h Suction Lifting Motor 36V1500N
Brush Width 1060mm Water Tank  240L
Squeegee Width 1200mm Sewage Tank  260L
Brush Diameter (QTY) 19inch*2 Sound Level 65db
Brush Speed 0-8KM/H  Battery Pack 36v200ah
Brush Motor 1000W*2 Charging Time 6-8H
Brush Pressure 55kg Working Time 7-8H
Travel Motor 1400w Battery Weight 208.2KG
Suction Motor 650W Machine Weight 430kg
Vacuum Degree 190mbar Pack Dimensions 1886*1070*1660mm
Travel Speed 0 - 8km/h Machine Dimensions (with Water Tank) 1822*1135*1500mm
Maximum Gradeability 15% Overall Dimensions (with squeegee) 1822*1200*1500mm



Applications

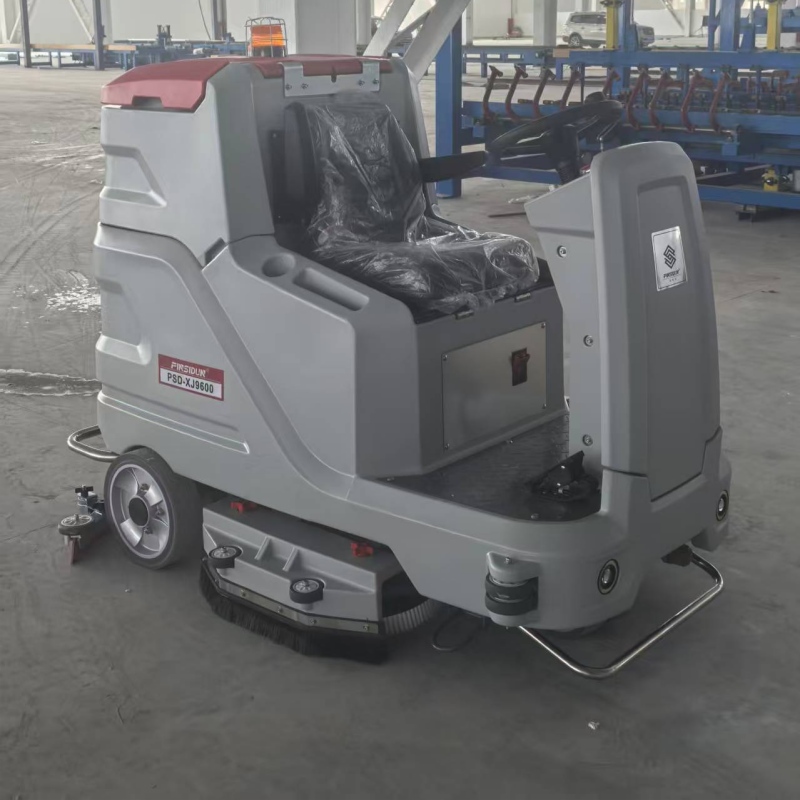

  • Warehouse floor cleaning scrubber dryer equipment

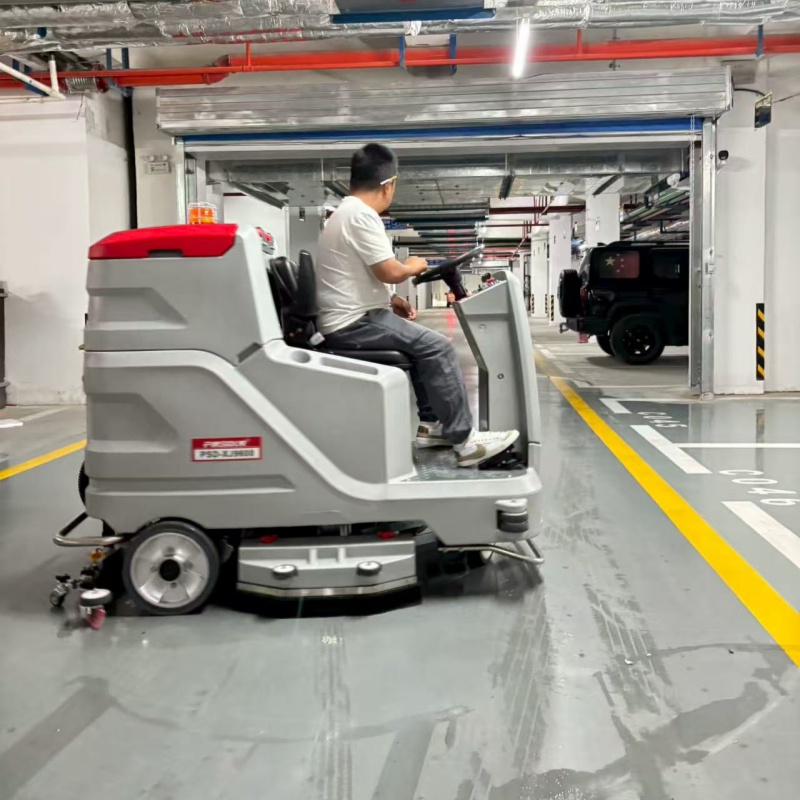

  • Automatic cleaning equipment for epoxy floor surface
  • Ride-on electric floor scrubber dryer for parking lots

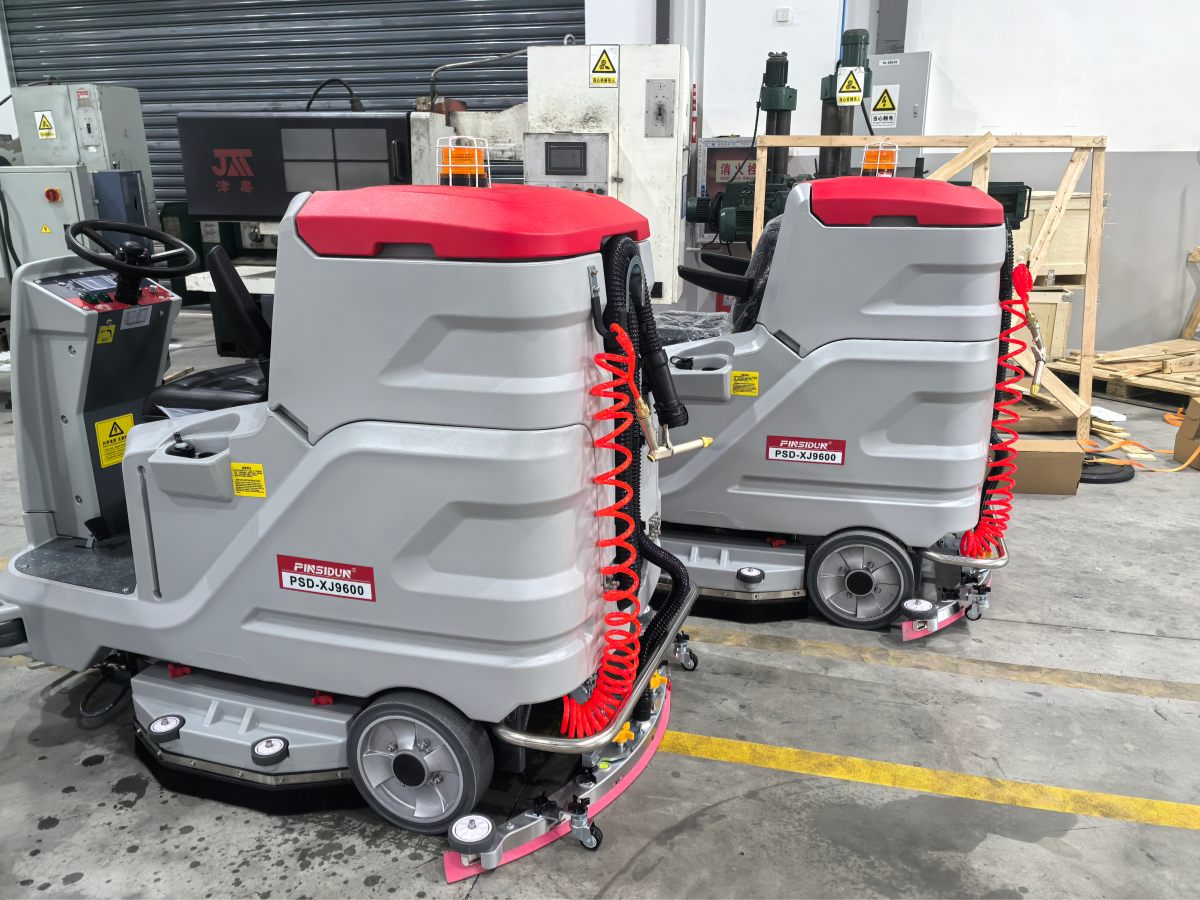

  • Commercial ride-on floor washing and drying machine

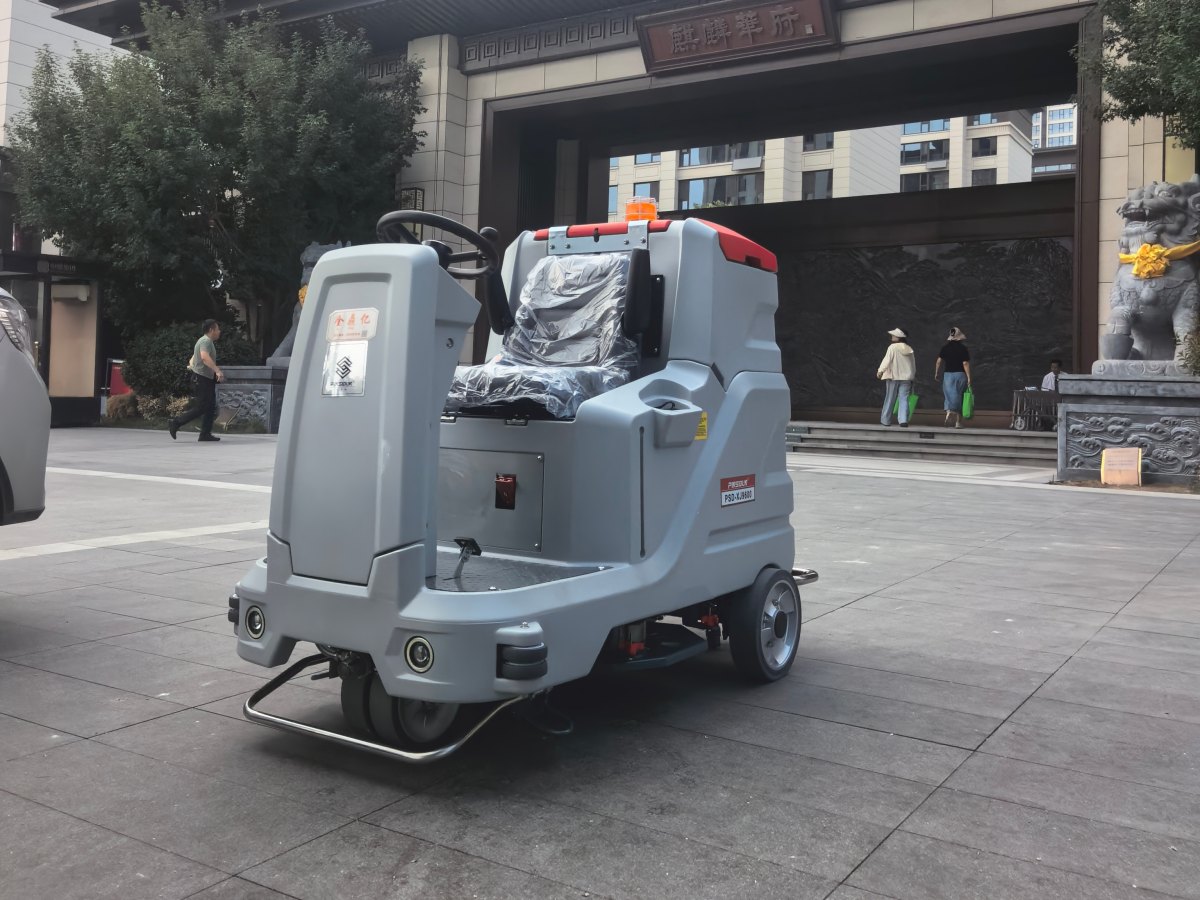

  • High efficiency automatic scrubber dryer

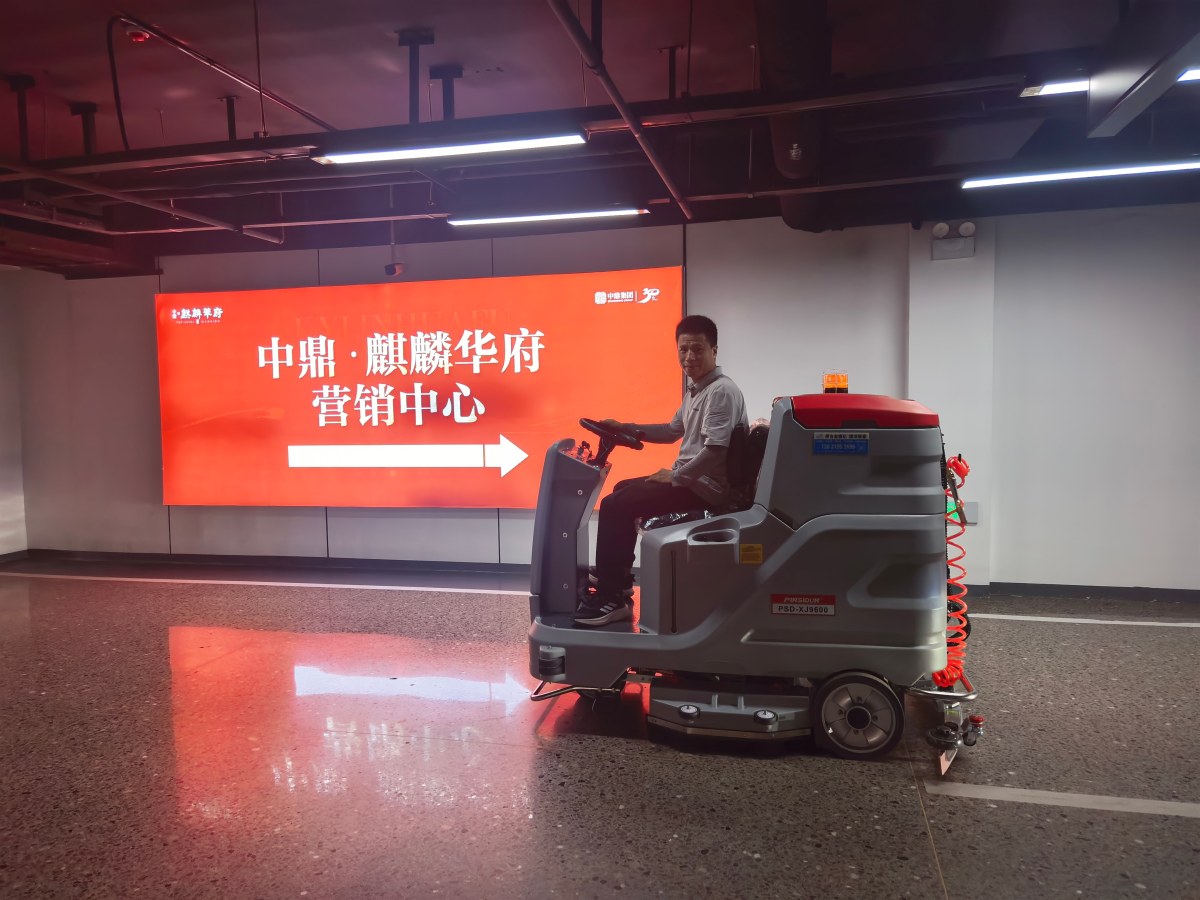

  • Industrial auto scrubber machine with strong suction



Our Certification

automatic floor scrubbers for sale



Quality Service



ride on scrubber

FAQ

Q:Which kinds of batteries can we choose?
A:Our standard configuration is Lead-acid battery, it also can use lithium battery according to customer's request.

Q:How to carry out after-sales service?
A:During the warranty period, everything is free except for wearing parts and man-made damage. First, you need to provide the bad parts; then we will be free to repair or change for you.

Q:What about your floor cleaning machine price?
A:Anytime, high quality is the primary standard of our factory, on the top quality basis, sure you will get reasonable and satisfied price!

Q:Can you send me the video to show how the floor cleaning machine work?
A:Certainly, we have made video of every machine and uploaded them by our chain address.If you need, we will send you operation video.

Q: Is customized design acceptable ?
A:Yes, of course, we have professional engineers help design the most proper one for you.
