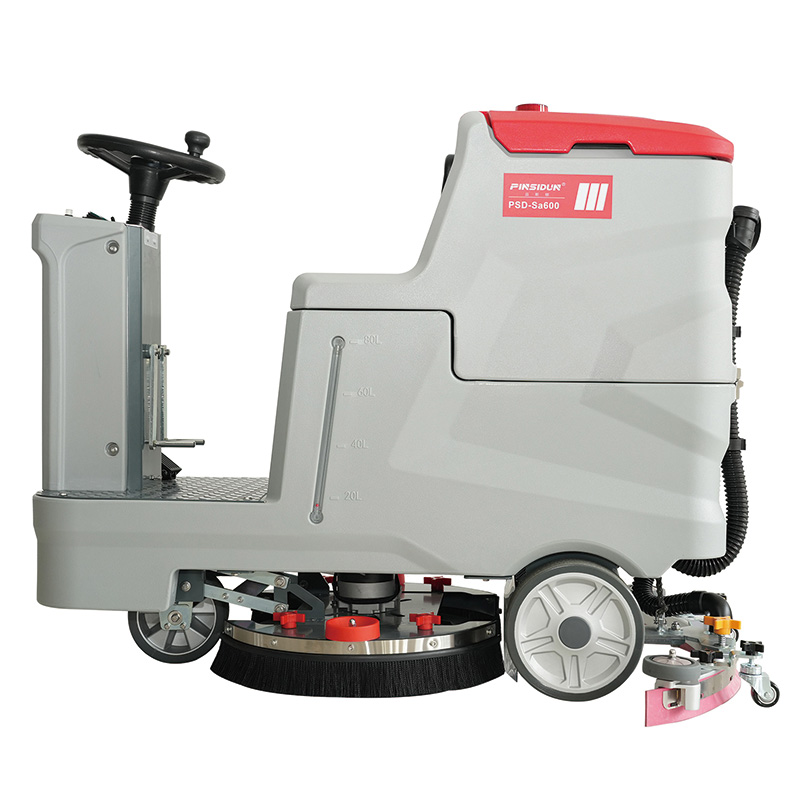

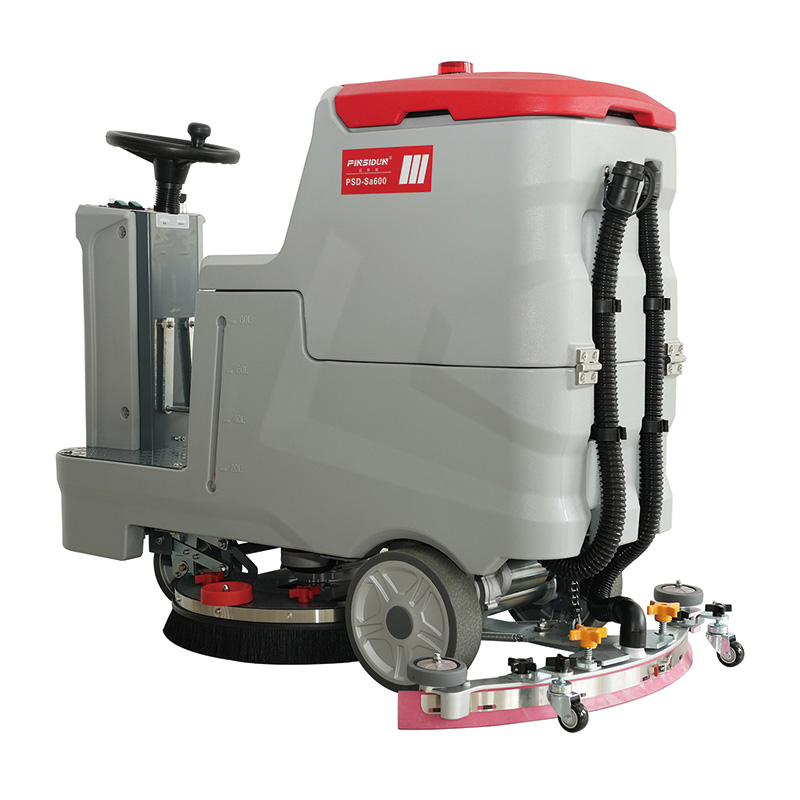

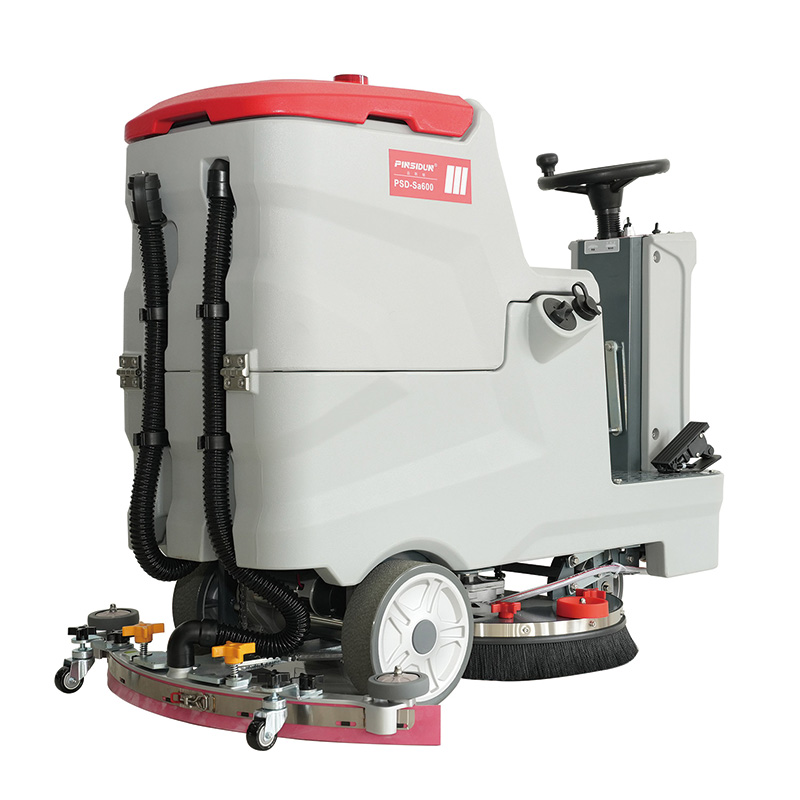

PINSIDUN Sa600 series is medium ride on floor scrubber, it is manually lower the brush and squeegee,it is very economical model. The machine working efficiency 4200m²/H,it is suitable for medium-sized shopping malls, basements, school playgrounds, subways, railway stations, etc.
Item No :
PSD-Sa600Working Efficiency :
4200m²/HBrush/Squeegee Width :
600mm/900mmTank Capacity :
Water Tank 70L+Sewage Tank 80LBattery Capacity :
24V100AHMotor :
brush motor 500w+suction motor 500w+travel motor 300wPINSIDUN SA600 semi-automatic floor scrubber is an efficient cleaning device designed for industrial scenarios. It is equipped with 21 inch main brush disc, covers 600mm cleaning width, and has a theoretical efficiency of 4200㎡/hour. The 70L clean water tank and 80L sewage tank support continuous operation for 3-4 hours. It is equipped with lighting, horn and emergency stop functions. The operation panel integrates speed adjustment and fault prompts, and intelligently adapts to industrial-grade floor maintenance needs. It is an ideal choice for efficient cleaning and is suitable for deep cleaning of hard floors in warehouses, factories, etc.
Features
Efficient and powerful: large brush plate + high speed, high cleaning efficiency, water absorption width of up to 900mm, and complete sewage recovery.
Intelligent and convenient: the panel integrates fault diagnosis and water level alarm, the brush plate and squeegee automatically rise and fall, and the operation is simple.
Long-lasting battery life: large-capacity battery supports long-term operation, and different charging times are adapted to winter and summer to ensure stable battery life.
Safe and durable: emergency shutdown, low voltage protection, and complete maintenance plan to extend life, adapt to -10℃ to 40℃ environment
Triple cleaning system: 900mm ultra-wide water-absorbing rubber strip, 500W vacuum suction to instantly recover sewage, linked brush plate acceleration design, automatic start and stop of brush plate by stepping on the accelerator
Industrial-grade intelligent control: 32 controller fault code diagnosis, automatic shutdown when sewage tank overflows, electronic emergency stop switch + ramp anti-skid brake
Convenience of maintenance: quick-detachable brush plate, modular battery system, three-level maintenance system.
Specification
Name | SA600 | Turning Radius | 870mm |
Rated Voltage | 24V | Water Tank | 70L |
Working Efficiency | 4200m²/H | Sewage Tank | 80L |
Brush Width | 600mm | Sound Level | 65db |
Squeegee Width | 900mm | Battery Pack | 24V100A |
Brush Diameter (QTY) | 21 inch*1 | Charging Time | 6 - 8h |
Brush Speed | 0 - 8km/h | Working Time | 3 - 4h |
Brush Motor | 500W | Battery Weight | 63KG |
Brush Pressure | 30KG | Machine Weight | 156kg |

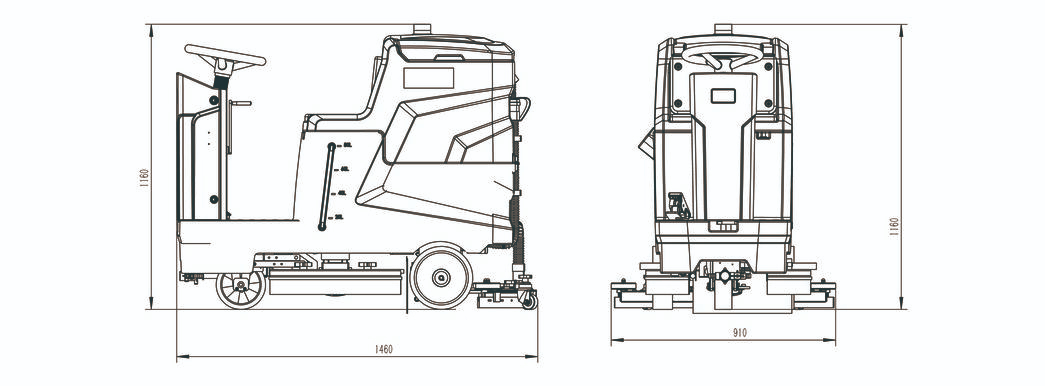

Suction Motor | 500W | Machine Dimensions (with Water Tank) | 1465*655*1160mm |
Vacuum Degree | 150mbar | Overall Dimensions (with squeegee) | 1465*900*1160mm |
Travel Motor | 300W/23: 1 | Pack Dimensions | 1480*1350*775mm |
Travel Speed | 0 - 8km/h | Accessories | Brush Disc, Needle Disc |
Maximum Gradeability | 8% |
