Auto Scrubber Floor Machine Floor Cleaning Machine PSD-XJ660

PINSIDUN XJ660 is an efficient and professional fully automatic commercial floor scrubber, suitable for commercial and industrial scenes, covering tile and hard floor cleaning.

  • Item No :

    PSD-XJ660
  • Working Efficiency :

    5500m²/h
  • Brush/Squeegee Width :

    660mm/1000mm
  • Tank Capacity :

    Water Tank 80L+Sewage Tank 85L
  • Battery Capacity :

    24V145AH
  • Motor :

    brush motor 300w*2+suction motor 500w+travel motor 300w

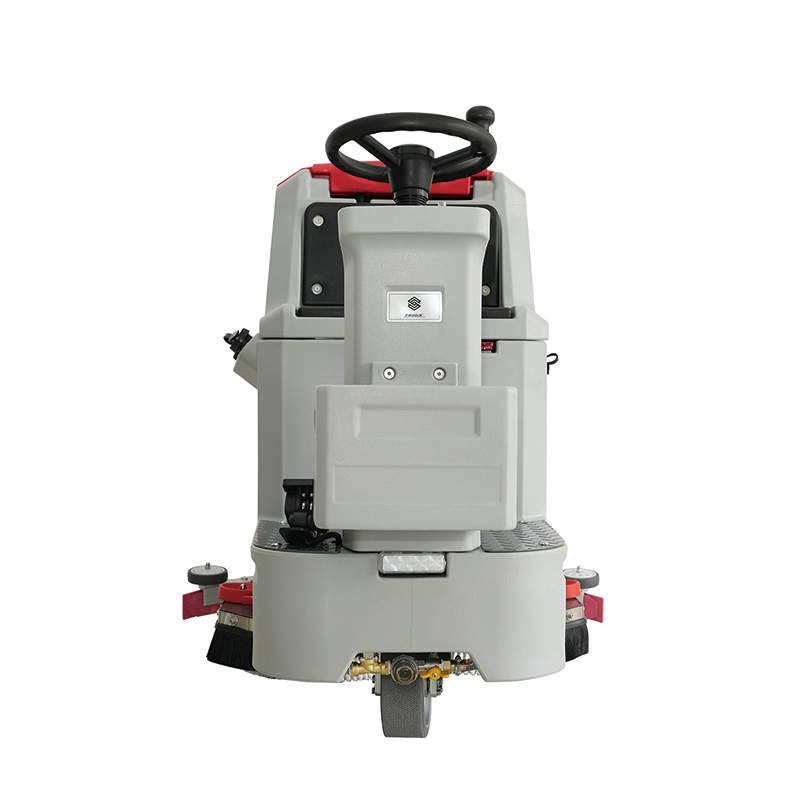

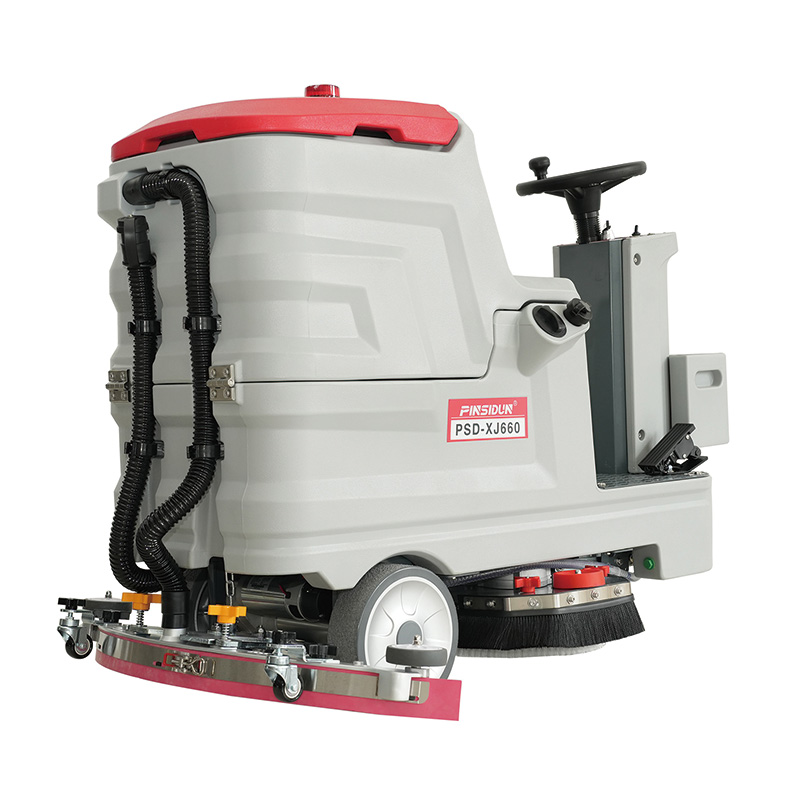

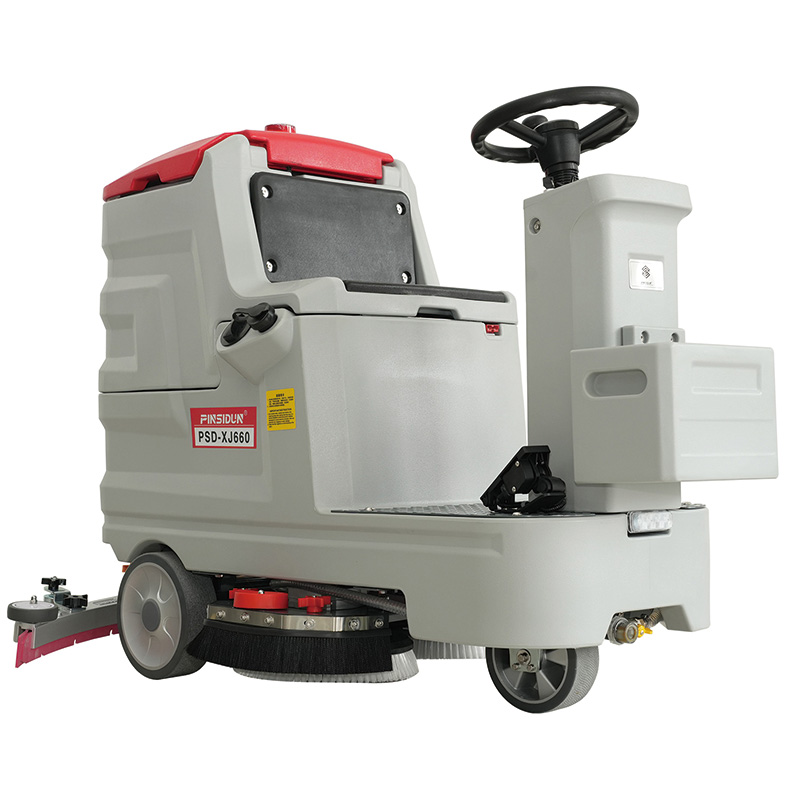

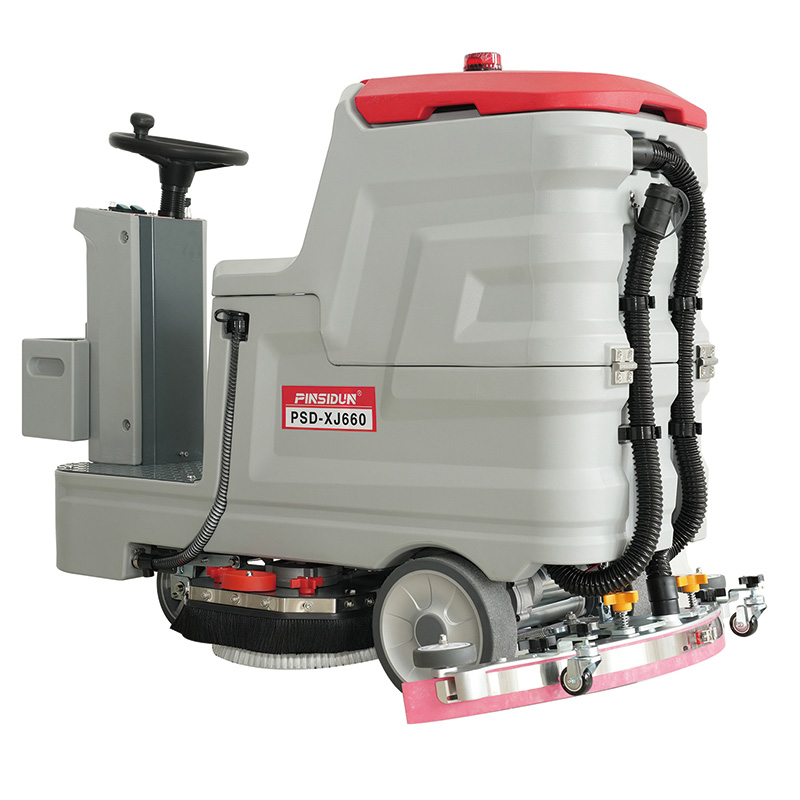

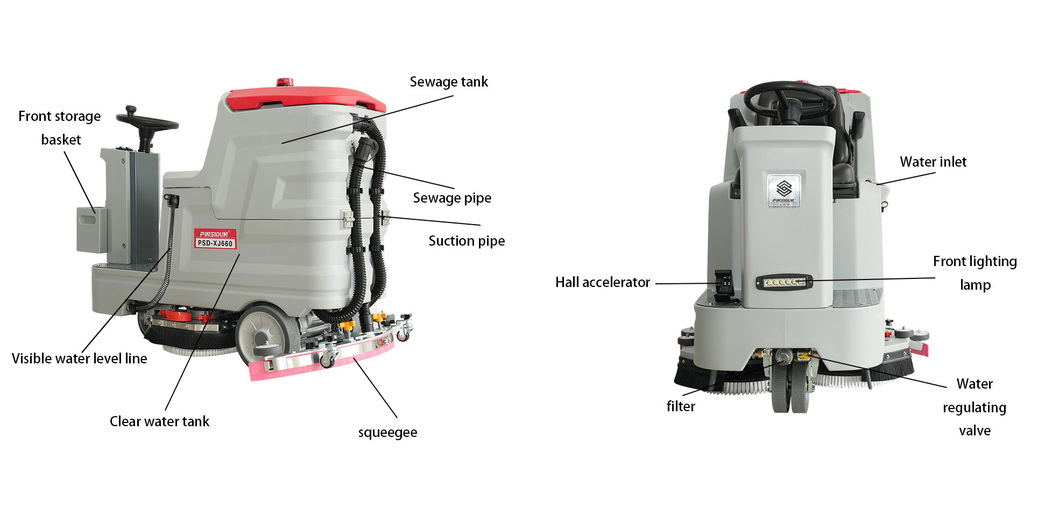

 PINSIDUN XJ660 small automatic double brush ride on floor scrubber. The main body of the main machine is red and white, with a striking red area on the top, and a black steering wheel for easy driving and control. The machine body is compact, equipped with dual 13-inch floor scrubbers with a width of 660mm and a 1000mm wide squeegee, which significantly improves the cleaning coverage and efficiency. The combination of large driving wheels and small auxiliary wheels at the bottom ensures stable travel, with a maximum climbing grade of 8%. The machine body integrates an 80L clean water tank and an 85L sewage tank, and is clearly marked with model identification. It has a fully automatic lifting motor for the brush plate and squeegee, 65db low noise, flexible speed adjustment from 0-8km/h, and 8% climbing ability, which is suitable for cleaning needs in multiple scenes such as supermarkets and factories.



Features


Extraordinary efficiency: The theoretical working efficiency is as high as 5500㎡/hour, which greatly exceeds the manual cleaning speed and is suitable for fast cleaning of large areas.

Strong cleaning power: Equipped with two 24V/300W high-power brush disc motors to provide rotational power , combined with a 24V/500W powerful water suction motor to produce a high vacuum of 150mbar, ensuring strong scrubbing of stains and rapid absorption of sewage, achieving the "washing and suction integration" effect.

Large capacity and long battery life: 80L clean water tank and 85L sewage tank reduce the number of frequent water additions and pouring. The 24V145Ah large-capacity battery pack supports 3-4 hours of continuous work and takes 6-8 hours to charge.

Stable control: The fully automatic driving design (with steering wheel) and the travel speed of 0-8km/h (Travel Speed) make the control flexible and labor-saving, and the maximum 8% climbing ability adapts to complex terrain.

Professional applicability: Designed for hard and smooth floors such as tiles and epoxy floors, it is a professional cleaning solution for supermarkets, factories, hospitals and other places.

Compact and durable structure: The whole machine is compact but solid and stable,  and the structure is suitable for entering and exiting a variety of cleaning environments.

Ergonomics and low noise: The driving design reduces the burden on the operator, and the noise during operation is controlled at around 65 decibels (db), which is within an acceptable range.

commercial floor scrubber cleaning machine



Specification

Name PSD-XJ660 Travel Speed 0 - 8km/h
Rated Voltage 24V Brush Lifting Motor  24V1500N
Working Efficiency 5500m²/h Suction Lifting Motor 24V1500N
Brush Width 660mm Water Tank  80L
Squeegee Width 1000mm Sewage Tank  85L
Brush Diameter (QTY) 13inch*2 Sound Level 65db
Brush Speed 0 - 8km/h Battery Pack 24V145A
Brush Motor 24V/300*2W Charging Time 6-8H
Brush Pressure 45kg Working Time 3-4h
Suction Motor 24V/500W Battery Weight 31.5KG
Vacuum Degree 150mbar Machine Weight 168.5KG
Travel Motor 300W Pack Dimensions 1480*1350*775mm

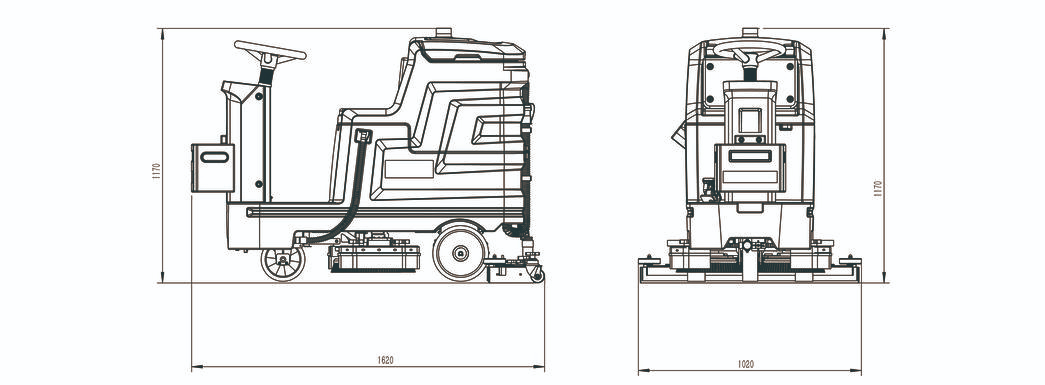

Travel Speed 0 - 8km/h Machine Dimensions (with Water Tank) 1620*900*1160mm
Maximum Gradeability 8% Overall Dimensions (with squeegee) 1620*1000*1160mm

commercial floor scrubber

commercial tile and floor cleaning machine

industrial floor and tile cleaning machinestile floor scrubber machine certificatetile floor scrubber floor cleaning machine for homecommercial auto scrubber hard floor cleaning machine

FAQ


Q:Which kinds of batteries can we choose?
A:Our standard configuration is Lead-acid battery, it also can use lithium battery according to customer's request.

Q:How to carry out after-sales service?
A:During the warranty period, everything is free except for wearing parts and man-made damage. First, you need to provide the bad parts; then we will be free to repair or change for you.

Q:What about your floor cleaning machine price?
A:Anytime, high quality is the primary standard of our factory, on the top quality basis, sure you will get reasonable and satisfied price!

Q:Can you send me the video to show how the floor cleaning machine work?
A:Certainly, we have made video of every machine and uploaded them by our chain address.If you need, we will send you operation video.

Q: Is customized design acceptable ?
A:Yes, of course, we have professional engineers help design the most proper one for you.
